Progressive Suspension Professional Fork Lowering Kits

Progressive Suspension Professional Fork Lowering Kits

Select variant:
16-272
for 41.3 mm fork tubes; fits FL(H/HT/T) late 1977-2016 (except FLT/FLHT 2002-2005), FLHR 1994-2016, FX(D)WG 1980-2005, Softail 1984-2017
16-271
for 39 mm fork tubes; fits Sportster, FXR 1988-2020, Dyna 1991-2005 (FXDX only 1999)
16-309
for 49 mm fork tubes; fits Dyna 2006→
Price and stock:
Item №
16-272
Price incl. VAT
204.80 €
Available
18
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 32.70 € German VAT.
kit
Save to wish list

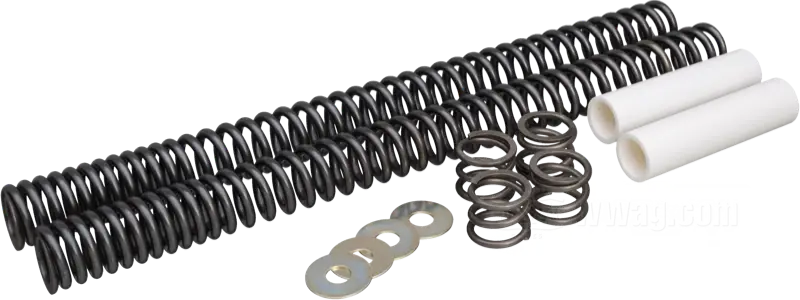

Fork lowering kits for the sporting rider which fit most late model Harleys. They allow to lower the front end by one or two inches. Each kit contains progressive wound springs, all necessary conversion parts and installation instructions. Spring rates are specifically engineered for each application.

  • Lowering kit »Professional« by Progressive Suspension
  • for Hydraulic fork
  • for 41.3 mm fork tubes
  • fits FL(H/HT/T) late 1977-2016 (except FLT/FLHT 2002-2005), FLHR 1994-2016, FX(D)WG 1980-2005, Softail 1984-2017
  • steel, bare
  • gross weight: 1.69 kg

PS Fork Lowering Kits on 1949-1977 models

Progressive Suspension did not design this kit for 41 mm forks from 1949 to early 1977. However, an experienced customizer can still use it in these models.

To do this, the included plastic spacer must be replaced with a homemade one – preferably made of thin-walled steel tubing that fits over the vent valve. The length of the spacer depends on the desired preload.

Eliminating the valve is not really an option, as the pressure generated in this fork design can overwhelm the sealing rings.

The damper piston can be removed by sliding it upwards through the fork tube without dismantling the oil flow limiters at the bottom of the tube in order to install the rebound spring from the kit.
