Progressive Suspension Fork Springs
Select variant:

for 33.3 and 35 mm fork tubes; fits K-Model/Sportster 1954-1987, FX/FXR 1975-1987; length: 500 mm; Ø 23 mm; replaces OEM HD 45408-75


for 39 mm fork tubes; fits Sportster 1987-1993 (Hugger 1988-1992), FXR 1988→; length: 470 mm; Ø 30 mm; replaces OEM HD 45376-87

for 39 mm fork tubes; fits Sportster 1994-2003, Hugger 1992-2003, FXD/C 1995-2005; length: 470 mm; Ø 30 mm; replaces OEM HD 45941-95, and 45376-97

for 39 mm fork tubes; fits Sportster 2004-2020; length: 470 mm; Ø 30 mm; replaces OEM HD 45376-04

for 39 mm fork tubes; fits FXR 1987→, FXD(B/C/L) 1991-1999; length: 470 mm; Ø 30 mm; replaces OEM HD 45373-88

for 39 mm fork tubes; fits FXDX 2000-2005; length: 445 mm; Ø 30 mm; replaces OEM HD 46103-00

for 41.3 mm fork tubes; fits FL(H/HT/T) 1949→ (except FLT/FLHT 2002-2005), FLHR 1994→, FX(D)WG 1980-2005, Softail 1984-2017; length: 400 mm; Ø 32 mm; replaces OEM HD 46051-49A

for 41 mm fork tubes; fits FLT/FLHT 2002-2005; length: 375 mm; Ø 32 mm

for 49 mm fork tubes; fits V-Rod 2002→ (no inverted forks), Dyna 2006→, FXCW 2008→; length: 460 mm; Ø 43 mm
Price and stock:
Item №
16-192
Price incl. VAT
167.68 €
Available
6
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 26.77 € German VAT.
- Spring kit by Progressive Suspension
- for Hydraulic fork
- for 33.3 and 35 mm fork tubes
- fits K-Model/Sportster 1954-1987, FX/FXR 1975-1987
- steel, bare
- length: 500 mm
- Ø 23 mm
- replaces Harley-Davidson part number HD 45408-75
- USA
- gross weight: 1.17 kg

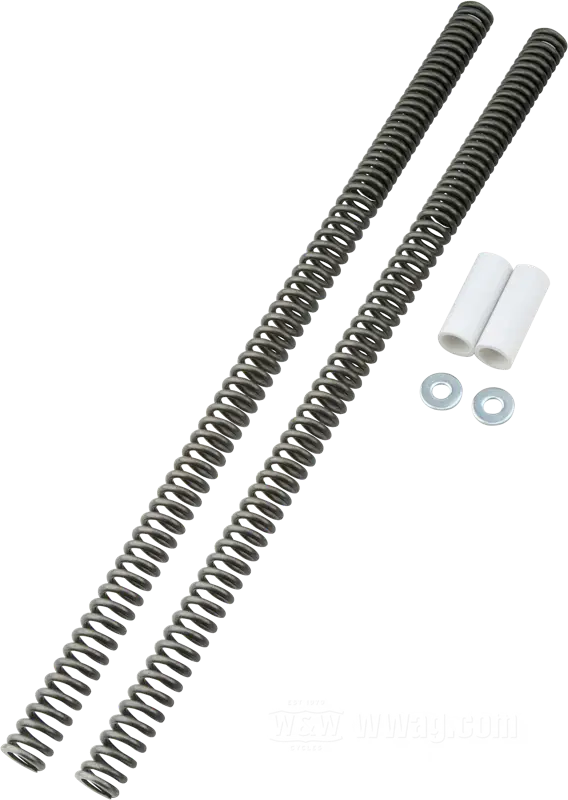

These springs eliminate front end sag, reduce nose dive under braking, improve stability and increase ride comfort. Each kit contains a pair of springs and a pair of spacers which must be cut to length.
Accessories:

Piston Rods and Spring Retainers FX and XL
Stock replacement retainers for fork piston rod and springs which fit K-Model, early Sportster and Super Glides.

Colony Special Tools for Early Sportster Forks
Special pin wrench fo removal and installation of the fork piston rod and spring retainers of early Sportster and Super Glides front ends.
