Complete MAG-12 Wheels with Drum Brake Hub 1936-1972
Replacement Parts
Mounting Kits for Drum Brakes
Mounting Kits for Drum Brakes
Select variant:
fits Big Twin with hydraulic brake drum 1958-1962 rear
fits Big Twins with mechanical drum brake 1936-1966 front, 1936-1957 rear, W(L) 1937-1952 rear
fits FL(H) 1967-1972 front/rear, FX 1971-1972 rear
Price and stock:
Item №
26-604
Price incl. VAT
147.11 €
Available
10
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 23.49 € German VAT.

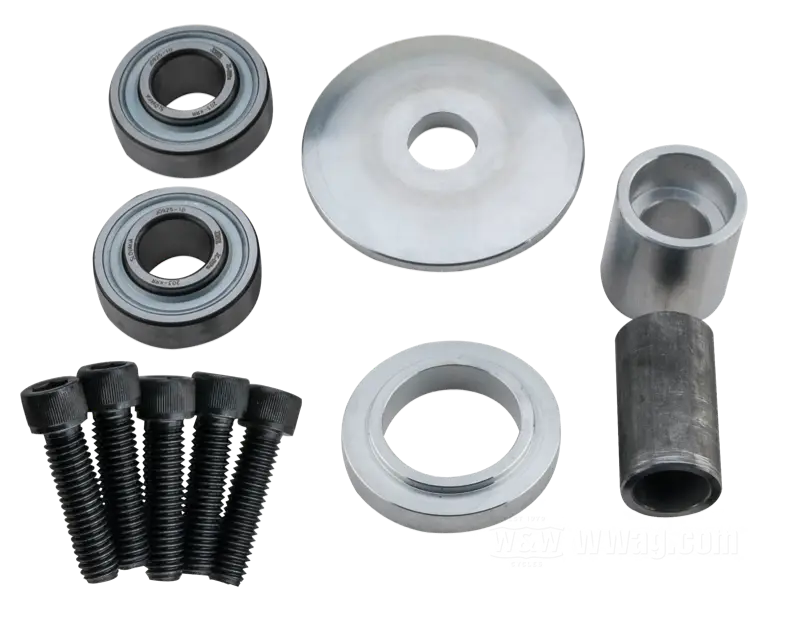

- Mounting kit by Cannonball
- for MAG-12 Wheels
- fits Big Twin with hydraulic brake drum 1958-1962 rear
- billet aluminum, machined finish
- matching axle Ø: 17 mm
- with bearings, bearing spacers and small parts
- Germany
- gross weight: 491.8 g
Hub adapter kits allows the installation of drum brakes on the Cannonball MAG-12 wheels.
Unlike with stock type spoke wheels Cannonball MAG-12 wheels require the drum to be bolted to the hub from the front side. Special bolt-on brake drums can be ordered as accessory. If you plan to keep your stock brake drum the mounting bolt circle needs to be enlarged slightly, including counterbores at the existing central grease deflector so the bolt heads clear the deflector. Drill templates to perform this job are available separately.
Accessories:
15-296
Front axle; fits FL(H) 1967-1972; Cannonball MAG-12 wheels in 1949-1971 Wide Glide Forks; steel, chrome-plated; length: 335 mm; Ø 17 mm; thread: 1/2”-20; replaces OEM HD 43875-67; gross weight: 670 g
15-328
Rear axle; fits FL(H) 1967-1972 and FX 1971-1972; Cannonball MAG-12 wheels in 1936-1972 Big Twin frames; steel, chrome-plated; length: 297 mm; Ø 17 mm; thread: 5/8”-18; replaces OEM HD 41552-67; gross weight: 600 g
15-285
Front axle by Cannonball; for Springer fork; fits Big Twin/WLC/Servi-Car 1937-1957; Cannonball MAG-12 wheels; steel, parkerized; length: 262 mm; Ø 17 mm; thread: 1/2”-20; Germany; gross weight: 428 g
See also:
Cannonball Brake Drums Rear
Unlike with stock type spoke wheels MAG-12 wheels require the drum to be bolted to the hub from the front side. The existing grease deflector, however, demands the bolt circle to be enlarged slightly so the bolt heads clear the deflector. ...
Cannonball Brake Drums Front
Unlike with stock type spoke wheels MAG-12 wheels require the drum to be bolted to the hub from the front side. The existing grease deflector, however, demands the bolt circle to be enlarged slightly so the bolt heads clear the deflector. ...
Drill Jig Kits for Stock Brake Drums
This is a tool kit for those who prefer to modify and use their original brake drum on the MAG-12 wheel, rather than buying a pre-machined drum from us. ...
