James Gasket Kits for Transmissions: Big Twin 5 Speed



James Gasket Kits for Transmissions: Big Twin 5 Speed

Item №

59-131

Price incl. VAT

84.37 €

Available

3



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 13.47 € German VAT.

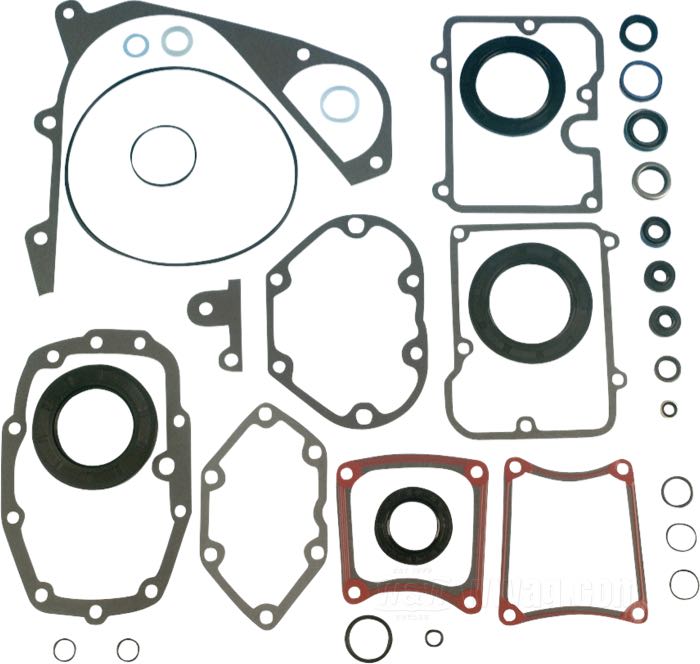

Gasket kit by James Gaskets
for Transmission
fits 5-speed Big Twin 1980-1999 without motor oil pan
paper / rubber / steel
replaces Harley-Davidson part number HD 33031-82, and 33031-85
gross weight: 380 g

Spare parts:

57-582

Seal washer by James Gaskets; for Screw / Outer primary chain guard; fits Big Twin late 1984-1998; steel / rubber; replaces OEM HD 31433-84; gross weight: 8 g

57-079

Gasket by James Gaskets; for Clutch cable / Side cover; fits Big Twin 1987-2017 (exc. Touring 2007→), Sportster 1988-2020, Buell; rubber; ID x OD: 8 x 13 mm, 2.5 mm thick ; replaces OEM HD 11179; gross weight: 2 g

57-017

O-Ring by James Gaskets; for Shifter shaft; fits Big Twin late 1984-1998; rubber; ID x OD: 17 x 20.8 mm, 1.9 mm thick; replaces OEM HD 11117; gross weight: 10 g

57-032

O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-048

O-Ring by James Gaskets; for Shifter shaft; fits FXR 1982-early 1984; and oil filter bracket XL 1986-1990; rubber; replaces OEM HD 11148; gross weight: 10 g

57-065

Gasket by James Gaskets; for Main drive gear / Ball bearing / Spacer; fits 5-speed Big Twins late 1984-2006 (Dyna →2005), XL 1991-2005, Buell 1996-2005 ; rubber, quad seal; replaces OEM HD 11165; gross weight: 10 g

57-071

O-Ring by James Gaskets; for Derby cover; fits Big Twin late 1984-1998; rubber; ID x OD: 154 x 161 mm, 3.5 mm thick; replaces OEM HD 25416-84; gross weight: 1 g

57-113

Oil seal by James Gaskets; for Main shaft / Main drive gear; fits 4-speed Big Twin 1965-1986, 5-speed Big Twin 1980-1990; steel / rubber; ID x OD: 25.4 x 31.9 mm, 4.5 mm thick; replaces OEM HD 12013A; gross weight: 10 g

57-114

Oil seal by James Gaskets; for Pushrod / Nut / Clutch hub; fits Big Twin 1965-early 1984; rubber / steel; ID x OD: 9.5 x 22.3 mm, 7.9 mm thick ; replaces OEM HD 12014; USA; gross weight: 10 g

57-135

Oil seal by James Gaskets; for Main shaft / Main drive gear; fits Big Twin 1991-2005; steel / rubber; ID x OD: 24 x 32 mm; replaces OEM HD 12035B; gross weight: 10 g

57-143

Oil seal; for Starter shaft / Transmission case; fits 5-speed Big Twin 1980-early 1984; steel / rubber; replaces OEM HD 12043; gross weight: 10 g

57-145

Oil seal by James Gaskets; for Shifter shaft / Transmission case; fits 5-speed Big Twins late 1980-2006 (Dyna →2005); steel / rubber; replaces OEM HD 12045; gross weight: 10 g

57-150

Oil seal by James Gaskets; for Main drive gear / Transmission case; fits Big Twin late 1984-early 1994, Sportster 1991-1994; steel / rubber; ID x OD: 53 x 86 mm; with WW 57-116; replaces OEM HD 12050; gross weight: 10 g

57-151

Oil seal; for Starter shaft / Transmission case; fits Big Twin late 1984-1988; steel / rubber; ID x OD: 18.5 x 29 mm; replaces OEM HD 12051; gross weight: 10 g

57-152

Oil seal by James Gaskets; for Main shaft / Inner primary cover; fits Big Twin late 1984→; steel / rubber; replaces OEM HD 12052A; gross weight: 10 g

57-153

Oil seal by James Gaskets; for Starter shaft / Inner primary cover; fits Big Twin 1989-1993; steel / rubber; ID x OD: 18.5 x 32 mm, 10.5 mm thick; replaces OEM HD 12053A; gross weight: 10 g

57-155

Oil seal by James Gaskets; for Main drive gear / Transmission case; fits Big Twin late 1994-2005, Sportster 1995-2005; steel / rubber; ID x OD: 57 x 86 mm, 6.2 mm thick; with quad seal; replaces OEM HD 12067B; gross weight: 40 g

57-169

Oil seal by James Gaskets; for Shifter shaft; fits Sportster late 1986-2005, Dyna 2006-2013, Softail 2007-2013, Touring 2007-2013, Buell 1997-2006; clutch release shaft FXST 1986, FXR and FLT 1984-1986; steel / rubber; replaces OEM HD 37101-84B; gross weight: 10 g

57-400

Seal washer; for Drain plug / Transmission case; fits Touring (FLT) and FXR 1980-1994; plastic; replaces OEM HD 6007; gross weight: 10 g

57-591

Seal washer by James Gaskets; for Neutral switch; fits Big Twin 1965-1986, FLH+FLT 1980→, Evo Dyna Glide 1991-1998; plastic; replaces OEM HD 33043-80; gross weight: 10 g

57-618

Gasket by James Gaskets; for Top cover / Transmission; fits Big Twin 1986-1998 (Softail →1999); paper; replaces OEM HD 34904-86A; gross weight: 10 g

57-619

Seal washer; for Filler plug; fits 5 speed Big Twin 1980-1986; plastic; replaces OEM HD 37091-80; gross weight: 10 g

57-623

Gasket by James Gaskets; for Inner primary housing; fits FLT and FXR 1980-1984; paper; replaces OEM HD 34902-79A; gross weight: 10 g

57-624

Gasket by James Gaskets; for Inner primary housing; fits FLT and FXR 1980-1984; paper; replaces OEM HD 34903-79; gross weight: 2 g

57-625

Gasket by James Gaskets; for Top cover / Transmission; fits 5 speed Big Twin 1980-1985; paper; replaces OEM HD 34904-79; gross weight: 10 g

57-626

Gasket by James Gaskets; for Inspection cover; fits FLT/FXR 1980-1984; paper / silicone; replaces OEM HD 34906-79A; gross weight: 10 g

57-627

Gasket by James Gaskets; for Inspection cover; fits FXR/Touring 1985-2006; paper / silicone; replaces OEM HD 34906-85B; gross weight: 1 g

57-632

Gasket by James Gaskets; for Bearing housing; fits 5 speed Big Twin 1980-1998; paper; replaces OEM HD 35652-79B; gross weight: 10 g

57-634

Gasket by James Gaskets; for Side cover / Transmission; fits 5 speed Big Twin 1980-1986; paper; replaces OEM HD 36801-79; gross weight: 3 g

57-742

Gasket by James Gaskets; for Side cover / Transmission; fits Big Twin 1987-2006 (Dyna only →2005); paper; replaces OEM HD 36801-87A; gross weight: 10 g

James Gaskets for Under-Transmissions-Oil Tanks

James Gaskets for Under-Transmissions-Oil Tanks

See also:

PanAm Oil SAE 80W-90

PanAm Oil SAE 80W-90

Our lubricant for Big Twin transmissions. This high performance lubricant complies with API GL-4.
