Jagg Slimline Oil Coolers universal

Name: Jagg Slimline Oil Coolers universal
Brand: Jagg
SKU: WW24484
Price: 338.4 EUR
Availability: InStock

Oil cooler »Slimline« by Jagg; aluminum / steel, black; L x W x H: 205 x 55 x 30 mm; with oil hose, hardware; gross weight: 1.04 kg









Item №

52-101

Price incl. VAT

338.40 €

Available



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 54.03 € German VAT.

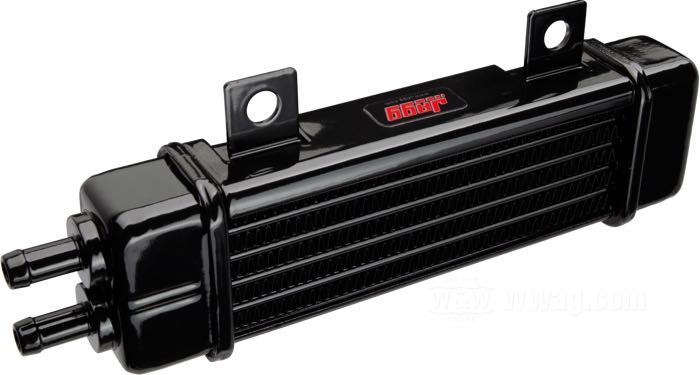

Oil cooler »Slimline« by Jagg
aluminum / steel, black
L x W x H: 205 x 55 x 30 mm
with oil hose, hardware
gross weight: 1.04 kg

The Slim-Line oil coolers were specially developed for Harley-Davidson models, combining high cooling performance with a subtly elegant design. The smooth end caps emphasize the discreet appearance, while the construction provides a large cooling surface in a compact design and minimizes restriction of oil flow.

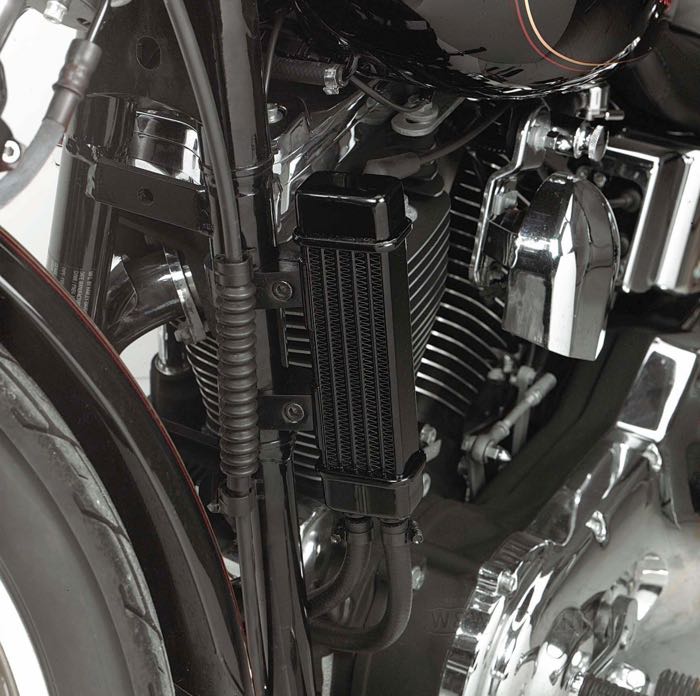

The oil coolers are usually mounted on the left frame tube, where they are optimally exposed to airflow. Attachment is via sturdy Uralite plastic clamps, which are both vibration-resistant and visually neat.

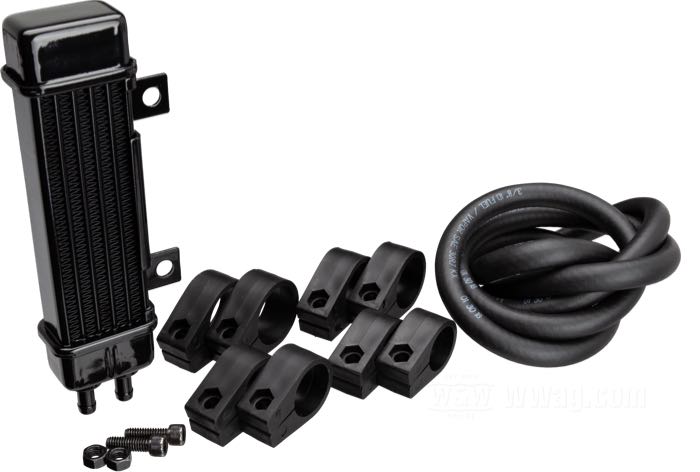

Scope of delivery:

Four pairs of clamps with inner diameters: 1-1/8”, 1-1/4”, 1-3/8”, and 1-1/2” – suitable for most installation situations on Harley-Davidson motorcycles.

The Slim-Line oil coolers are ideal for anyone who values functional performance combined with a classic, understated appearance.

Instructions

Yeah, there is stuff out there that almost looks like the real thing and costs way less. Not here at W&W CYCLES, though. If you feel like supporting product pirates rather than the originators and makers of high quality parts for your bike, fine with us. We're gonna stick with the real thing.

Accessories:

Jagg Manual Bypass Valves

Manually-operated by-pass valve which installs in-line of the two oil hoses to and from the cooler. In the open position, during warm-up, the oil will partially return to the tank without flowing through the cooler. As the oil temperature rises the amount of oil passing the cooler will gradually increase. With the by-pass valve manually closed all of the oil is forced to flow through the cooler. The latter is recommended only for high outside temperature.

more …

Jagg Oil Radiator Adapters Offset

Works with all H-D models with front-mounted spin-on oil filters. Mounts between base plate and oil filter and avoids due to its offeset construction filter to sensor contact. A thermostat is incorporated....
