Shop
>
Oil Tank
>
Oil Lines
>
Individual Oil Lines for Horseshoe Tanks
>
for Knucklehead and Panhead 1936-1964

Individual Oil Lines for Horseshoe Tanks

for Knucklehead and Panhead 1936-1964

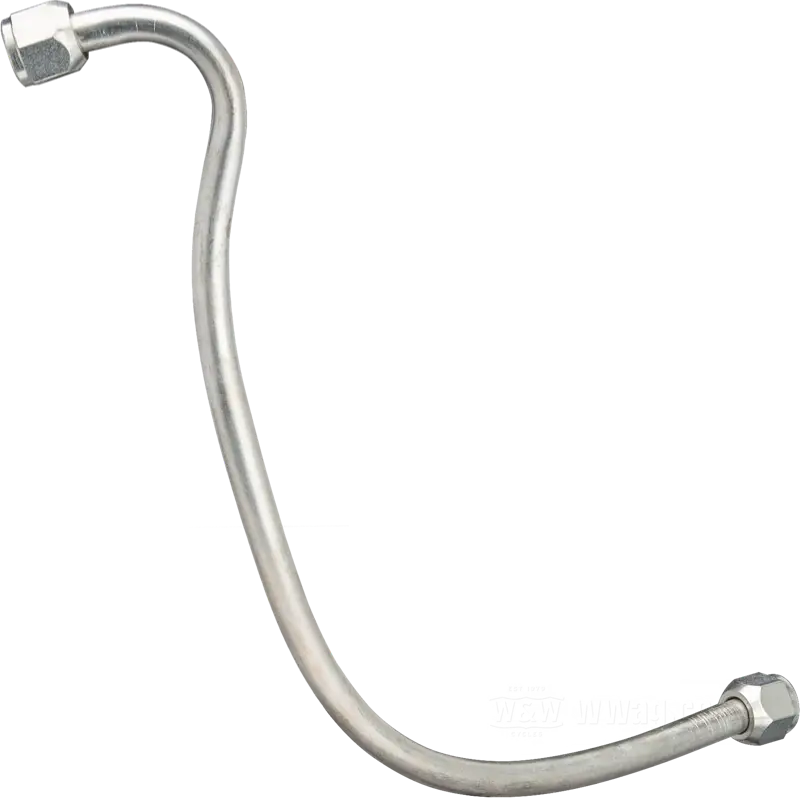

Reproductions of the stock steel oil lines with nuts as used with stock Horseshoe oil tanks and stock oil pumps 1936–1964.

  • steel
  • USA

Oil Line Nuts and Finish

All H-D production models had short oil line nuts on them 1915-1941. In 1941 the running change to longer type nuts was made. There is no difference in function or fit. The part number remained the same no matter the material of the line, type of nut, or finish. Early oil lines were nickle plated, later versions are cad plated. Chrome lines were never produced by the factory.

Illustration shows short end nuts on top and long on the bottom.

Item №
Version
Price incl. VAT*
unit
Availability in warehouse Germany
54-038
54-038
Oil pump feed line; fits Big Twin OHV 1936; oil tank to pump; CAD (ZnNi process); replaces OEM HD 3571-36
71.76 €
piece
Go to article
54-039
54-039
Oil pump feed line; fits Big Twin OHV 1937; oil tank to pump; CAD (ZnNi process); replaces OEM HD 3571-37D
98.29 €
piece
Go to article
54-045
54-045
Oil pump feed line; fits Big Twin OHV 1938-40; oil tank to pump; CAD (ZnNi process); replaces OEM HD 3571-38A, and 63511-38
71.28 €
piece
Go to article
54-050
54-050
Oil pump feed line; fits Big Twin OHV 1941-1949; oil tank to pump; CAD (ZnNi process); replaces OEM HD 3571-38A, and 63511-38
60.40 €
piece
Go to article
54-077
54-077
Oil pump feed line; fits Big Twin OHV 1950-1957; oil tank to pump; CAD (ZnNi process); replaces OEM HD 63511-38
71.40 €
piece
Go to article
54-060
54-060
Oil pump feed line; for swingarm frames; fits Big Twin 1958-1964; oil tank to pump; CAD (ZnNi process); replaces OEM HD 63511-58
72.59 €
piece
Go to article
54-041
54-041
Oil tank return line; fits Big Twin OHV 1936-1937; pump to oil tank; CAD (ZnNi process); replaces OEM HD 3571-36A
74.73 €
piece
Go to article
54-083
54-083
Oil tank return line; fits Big Twin OHV 1938-1940; pump to oil tank; CAD (ZnNi process); replaces OEM HD 3571-38C
60.45 €
piece
Go to article
54-051
54-051
Oil tank return line; fits Big Twin OHV 1941-1948; pump to oil tank; CAD (ZnNi process); replaces OEM HD 63506-41
68.31 €
piece
Go to article
54-046
54-046
Oil tank return line »Crossover Style«; fits Big Twin OHV 1949-1957; pump to oil tank; CAD (ZnNi process); replaces OEM HD 63506-41
63.43 €
piece
Go to article
54-078
54-078
Oil tank return line; for swingarm frames; fits Big Twin OHV 1958-1964; pump to oil tank; CAD (ZnNi process); replaces OEM HD 63506-58
59.02 €
piece
Go to article
54-042
54-042
Vent line; fits Big Twin OHV 1936-1937; gear case to oil tank; CAD (ZnNi process); replaces OEM HD 3572-36
88.30 €
piece
Go to article
54-087
54-087
Vent line; fits Big Twin OHV late 1938- early 1943; gear case to oil tank; CAD (ZnNi process)
68.31 €
piece
Go to article
54-052
54-052
Vent line; fits Big Twin OHV late 1943-1957; gear case to oil tank; CAD (ZnNi process); replaces OEM HD 63572-38
65.21 €
piece
Go to article
54-079
54-079
Vent line; for swingarm frames; fits Big Twin OHV 1958-1964; gear case to oil tank; CAD (ZnNi process); replaces OEM HD 63572-58
55.34 €
piece
Go to article
* The price includes German VAT (19% or reduced rate of 7% for Books).
