Grip Assemblies for Models 1954-1974
- Grip assembly
- fits Big Twin 1954-1964, K/XL 1953-1964
- steel
- Maximum Stroke: 30 mm
- replaces Harley-Davidson part number HD 56220-53, 56400-53A, and 56216-53
- gross weight: 890 g

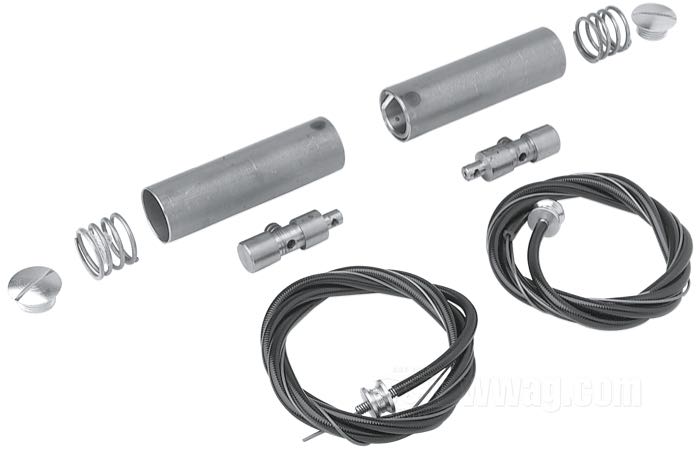

Complete set of throttle and spark controls for all handlebars 1954→. They include handlebar grip sleeves, control cable plunger, inner and outer cables and hardware.
Handlebar Spirals →1970
Throttle spiral grips on early model Harleys differ from common versions in that they push the cable rather than pulling it. This is made possible by using stiff steel cores instead of flexible braided inner cables.
Later carburetors 1971→ require pull action, so the factory changed to pull type grips in that year. For Custom applications using pull action carbs with early handlebars W&W also offers special pull type spiral grips.
Last but not not least
The Factory used the same spiral grips on both sides. That means, when using a push type grip as timer control on the left side of the handlebars the function is reversed, i.e. it pulls.
Spare parts:
Grip Spirals for Models 1953-1974
Control Wire/Coil for Models 1949-1953
Throttle Cable and Wire Clamp
Control Coil Bracket 1952-1974
Control Wire/Coil for Models 1954-1974
Plunger Pins and Roller Repair Kits 1953-1974
Handlebar Plungers for Models 1954-1974
Handlebar End Screws for Models 1953-1974
Accessories:
1962-1973 Grip Sets Ribbed Style
1949-1961 Grip Sets Waffle Style
