Gaskets for Cylinder Head: Twin Cam 3-3/4 ” Bore
Gaskets for Cylinder Head: Twin Cam 3-3/4 ” Bore
Select variant:

»Firering« by James Gaskets; metal/graphite compound / PTFE; 0.045” thick


»Firering« by James Gaskets; metal/graphite compound / PTFE; 0.036” thick

»Firering« by S&S; metal/graphite compound; 0.046” thick
Price and stock:
Item №
55-419
Price incl. VAT
21.30 €
Available
46
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 3.40 € German VAT.

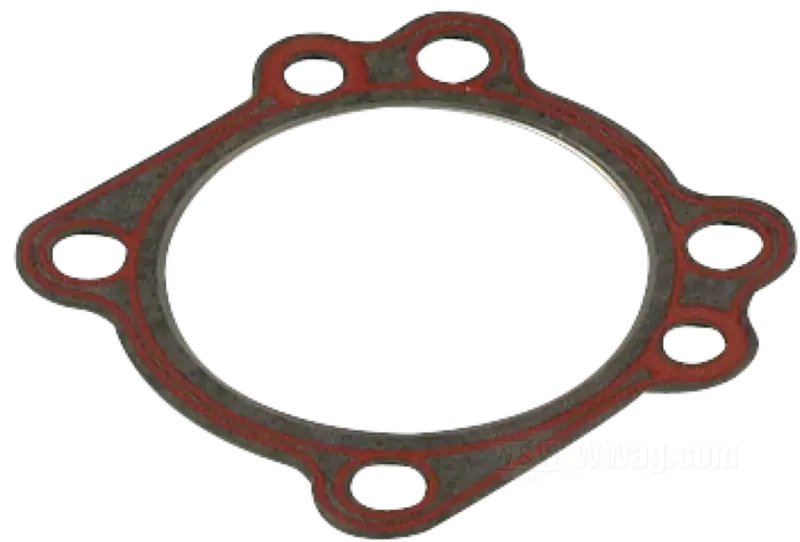

- Gasket »Firering« by James Gaskets
- for Cylinder head
- fits Twin Cam 88 and 96
- metal/graphite compound / PTFE
- nominal bore: 3-3/4 ”
- 0.045” thick
- replaces Harley-Davidson part number HD 16775-99
- gross weight: 10 g
Firering Gaskets
Thermally high stressed areas of the gasket — like the gap between cylinder barrel and head — are sheathed by a metal reinforcement ring.
Thin Head Gaskets
An easy way to increase compression ratio a tad is to install thinnner head gaskets. A snappier exhaust note and a more efficient combustion can be expected.
Example: using a .030" head gasket in lieu of a .045" will increase compression by approx. 0.25 points. So if your CR with a .045" head gasket is 9.6, the static CR will increase to 9.85 with a .030" head gasket. Valve to piston clearance must be checked where appropriate.
