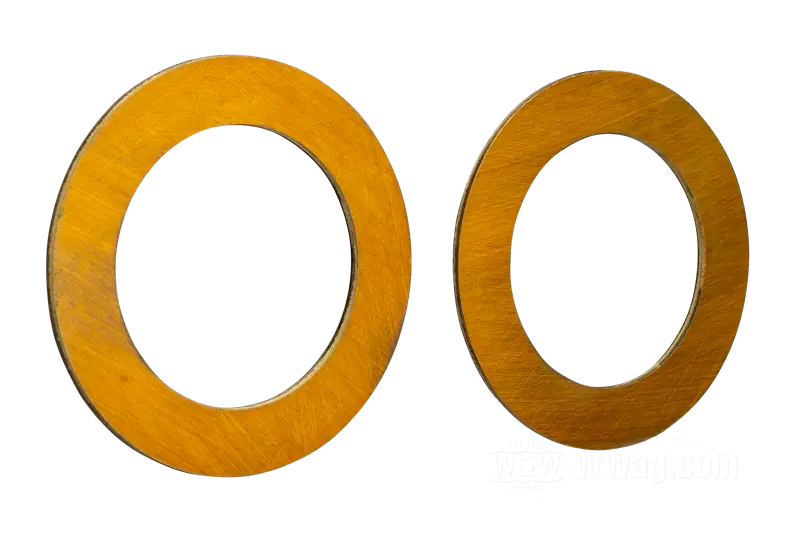

Flywheel Washers
- Thrust washer by Bender Cycle
- for Flywheels
- fits OHV BT 74“/80“ 1941-1999, Sportster 1972-early 1987
- brass, precision ground
- ID x OD: 35.7 x 53.1 mm, 1.52 mm thick
- replaces Harley-Davidson part number HD 6505, 6506, and 23973-41
- USA
- gross weight: 36 g
Harley-Davidson crank webs ("flywheels") are made of (steel) castings. To prevent the connecting rods themselves and the bearing cages of the big-end bearing from running directly against them, thrust washers are installed in the crank webs. These thrust washers are also used to set the side clearance of the big-end bearing and the connecting rod eye. Installing our thrust washers for the connecting rod bearing as a replacement for worn OEM parts is therefore a bit “tricky”: the connecting rod side clearance should be measured with a feeler gauge after tightening the crank pin nuts and adjusted if necessary.
