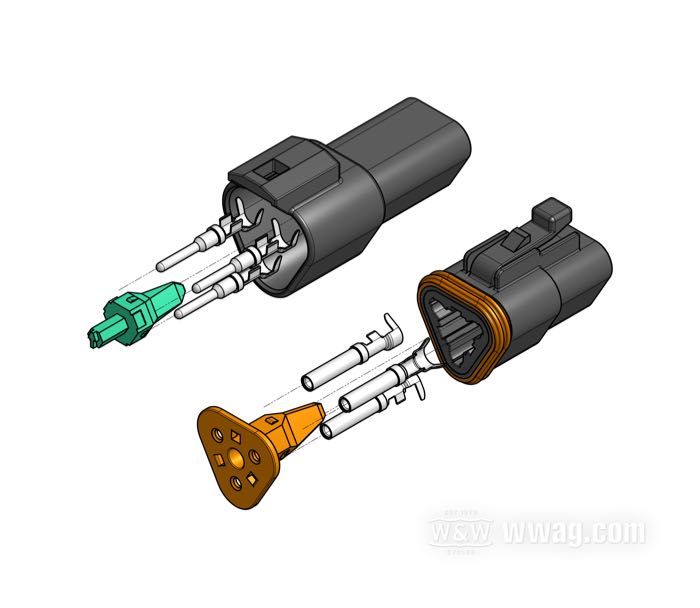

Deutsch DT Connector System
3-Way
- 3-way
- TPV (thermoplastic vulcanizate)
- for wires: ~ 0.5 - 2.5 mm² (AWG 20-14)
Simply the best connector system since the invention of the electric wire! This is the state-of-the-art solution for Custom wiring. Also use it as stock replacement, because the factory is using this system, too, and they know why. Our selection covers all necessities. The waterproof connections feature a locking system to prevent loosening. All components must be ordered separately.
Item №
Version
Price incl. VAT*
unit
Availability in warehouse Germany
* The price includes German VAT (19% or reduced rate of 7% for Books).
Accessories:
14-198
Attachment clip »DT« by Deutsch; for all except 8-way connector; TPV (thermoplastic vulcanizate), black; for wires: ~ 0.5 - 2.5 mm² (AWG 20-14); replaces OEM HD 72199-94; USA; gross weight: 2 g
14-398
Attachment clip »DT« by Deutsch; for all except 8-way connector; TPV (thermoplastic vulcanizate), grey; for wires: ~ 0.5 - 2.5 mm² (AWG 20-14); replaces OEM HD 72199-94; gross weight: 10 g
Deutsch DT Connector System - Seal Pins
If one connector hole is not used a seal pin for the unused cable hole is required.
Deutsch DT Connector System - Terminal Pins and Sockets
See also:
Electric Wires OEM Color Code
These plastic coated AWG 18 (=0.82 mm²) electric wires feature the same colors or color combinations as the factory uses. Perfect for the repair of OEM wiring harnesses or custom fabrication. Available per meter or as 30 meter rolls.
Spyke Quick Change Crimp Tool
A unique thing about this crimper is the quick release interchangeable 5 pair die set that just click into place. They will handle the most common terminals including insulated and non-insulated terminals, D-Sub terminals, open barrel terminals and naturally spark plug wire terminals. ...
Electric Wires Standard - 0.75 mm²
Electric Wires Standard - 0.5 mm²
Permatex Tune-Up Dielectric Grease
This dielectric grease is designed for any type of electrical connections and terminals. Applications are spark plug connectors, battery terminals, plugs, switches, bulbs, ignition coil terminals and fuses, which are efficiently protected from dirt, moisture, salt and corrosion. Before application, surfaces should be cleaned, and the ignition switched off.
Wedge Probes
Useful tool whick makes removing pins and sockets from Deutsch connectors a snap.
Electric Wires Cotton Braided
For the repair or custom fabrication of cloth covered wiring harness kits as used on classic Harleys and Indians.
