Cylinder Head Bolts Kits: Panhead/Shovelhead

Facts
Good to know
  • for Cylinder head
  • fits Panhead/Shovelhead 1948-1984
  • thread: 7/16”-20
  • replaces Harley-Davidson part number 16814-48, and 16814-77
  • USA

CP marked bolts

1035 CP (Chandler Products) marked bolts were used since 1943 until 1951. They were gradually replaced by CP 1038 marked bolts, which were used from 1947 onwards. Prior to this all bolts had plain heads.

Item №
Version
net price*
unit
Availability in warehouse Germany
Cylinder Head Bolts Kits: Panhead/Shovelhead
86-279
steel, parkerized, CP 1038; hex head; length: 2-1/2 ” (63.5 mm); wrench size: 9/16 ”; with washers
$60.09
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
86-269
steel Grade 8, CAD (ZnNi process); hex head with flange; length: 2-1/2 ” (63.5 mm); wrench size: 9/16 ”
$60.09
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
86-185
steel, CAD (ZnNi process); hex head; length: 2-1/2 ” (63.5 mm); wrench size: 9/16 ”; with washers
$60.09
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
86-195
steel, chrome-plated; hex head; length: 2-1/2 ” (63.5 mm); wrench size: 9/16 ”; with washers
$89.45
kit
Go to article

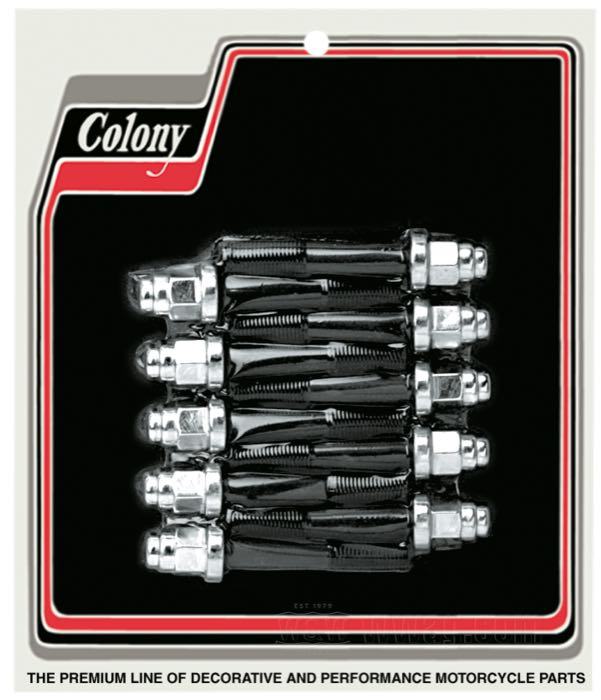

Cylinder Head Bolts Kits: Panhead/Shovelhead
85-100
steel, chrome-plated; acorn hex head; length: 2-3/8 ” (60.3 mm); wrench size: 9/16 ”
$70.84
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
85-200
steel, chrome-plated; cap hex head; length: 2-3/8 ” (60.3 mm); wrench size: 9/16 ”
$70.84
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
85-325
steel, chrome-plated; socket head; length: 2-1/2 ” (63.5 mm); wrench size: 3/8 ”; with washers
$61.62
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
84-810
also: S&S Knuckleheads; steel, browned ; 12-point head with flange; length: 2-1/2 ” (63.5 mm); wrench size: 7/16 ”; with washers
$57.19
kit
Go to article
Cylinder Head Bolts Kits: Panhead/Shovelhead
84-812
also: S&S Knuckleheads; steel, chrome-plated; 12-point head with flange; length: 2-1/2 ” (63.5 mm); wrench size: 7/16 ”; with washers
$68.23
kit
Go to article
* United States of America: Tax free shipping. Please check your local import fees.

Accessories:

Washers for Cylinder Head Bolts: Knucklehead, Panhead, Shovelhead Big Twin and XL

Washers for Cylinder Head Bolts: Knucklehead, Panhead, Shovelhead Big Twin and XL

more …

See also:

Cylinder Head Bolt Speed Wrench

Cylinder Head Bolt Speed Wrench

Useful extension with 9/16” hex socket tip for your OHV Big Twin cylinder head bolts. It is flexible and allows easy removal or installation of your head bolts after they are broken loose.
more …
