Cylinder Head Bolts Evolution 1985→ and Twin Cam Engines
Cylinder Head Bolts Evolution 1985→ and Twin Cam Engines
Select variant:
fits Big Twin late 1985-1991, Sportster 1986-1992; shank 1-5/8”; chrome-plated; replaces OEM HD 16480-85A; USA
fits Big Twin Evolution/Twin Cam late 1985→ and Evolution Sportster 1986→; shank 3-1/8”; zinc plated; replaces OEM HD 16478-85A; Japan
fits Big Twin Evolution/Twin Cam late 1985→ and Evolution Sportster 1986→; shank 3-1/8”; chrome-plated; replaces OEM HD 16478-85A
fits Big Twin Evolution/Twin Cam 1992→ and Evolution Sportster 1993→; shank 1-7/8”; chrome-plated; replaces OEM HD 16480-92A; Japan
Price and stock:
Item №
86-301
Price incl. VAT
23.84 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 3.81 € German VAT.

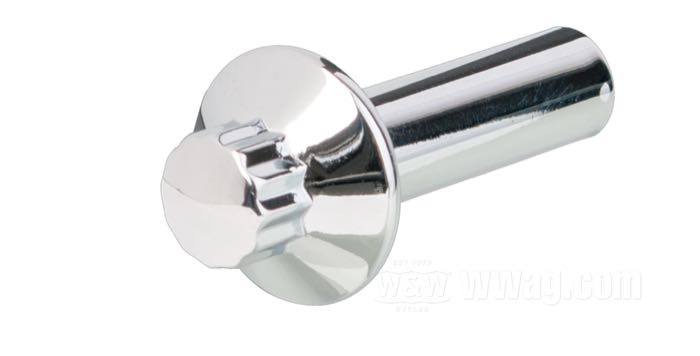

- Bolt
- for Cylinder head
- fits Big Twin late 1985-1991, Sportster 1986-1992
- shank 1-5/8”
- steel, chrome-plated
- Ø 79 mm
- 12-point head
- wrench size: 1/2 ”
- replaces Harley-Davidson part number HD 16480-85A
- USA
- gross weight: 6 g
From the Evolution series onward, Harley-Davidson cylinders and heads are secured using studs and nuts. The studs are threaded into the engine case. However, the nuts are not “standard” nuts, but long sleeves with internal threads and a flange with a 12-point head at the top.
These parts do not fit engines from 1984 or the first 1985 model series!
