Carburetor and Injection
Carburetor, Manifold and Air Cleaner Mounts
Bates Stock Aircleaner Eliminator Kit

Mounting kit by Bates

Item №

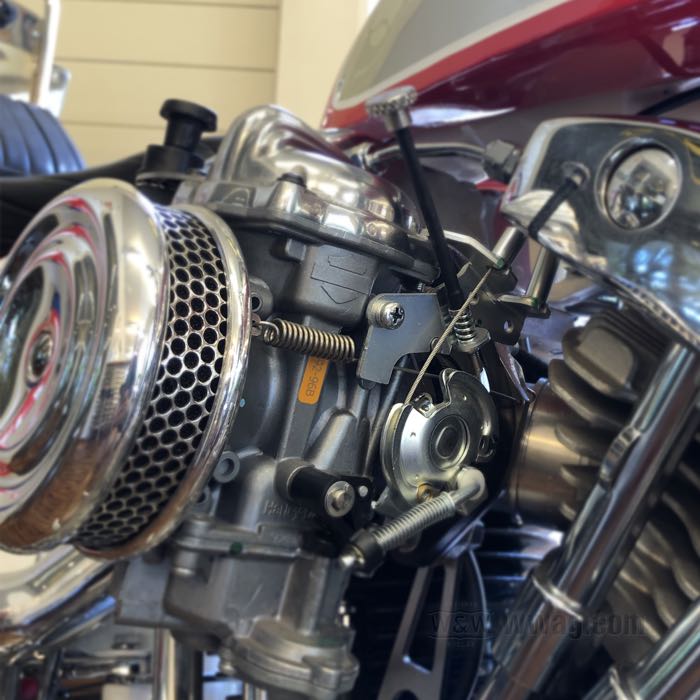

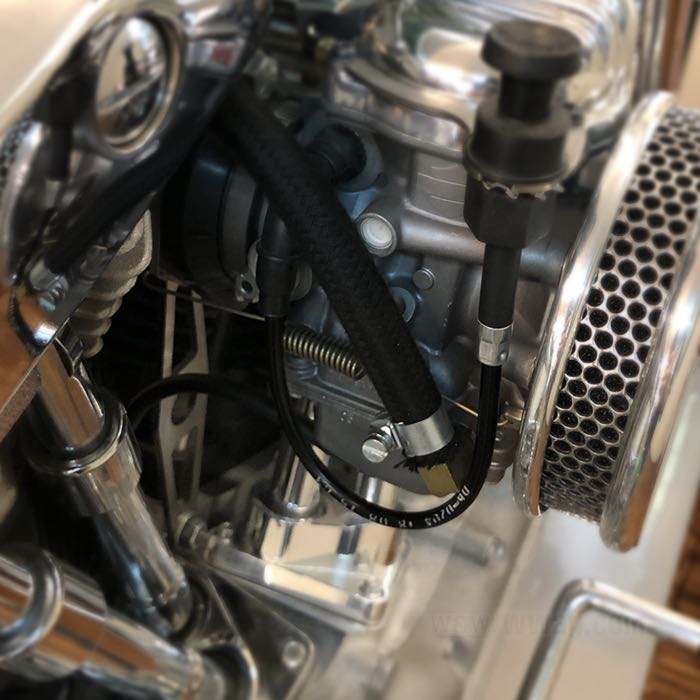

The installation of a a CV carburetor with Custom air cleaner on a Panhead, Shovelhead or Ironhead Sportster involves two problems:

  • the protruding upper carb end interferes with the commonly flat backing plates of accessory air cleaners
  • omission of the stock CV air cleaner results in an unsupported carburetor

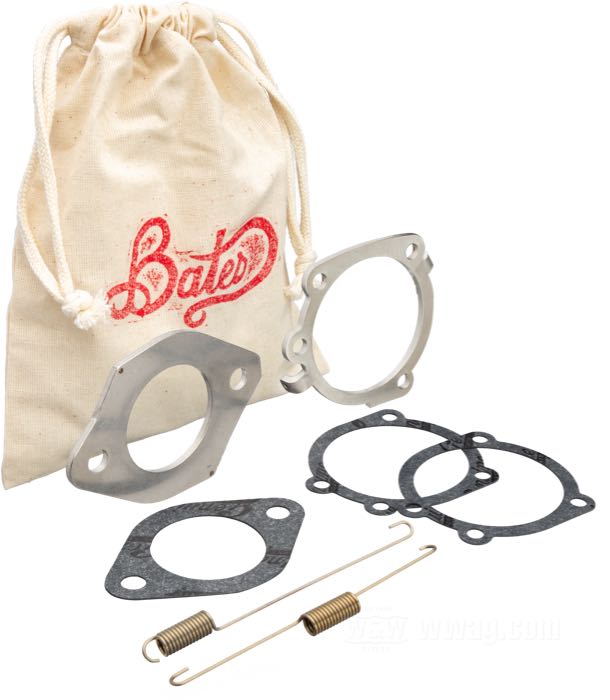

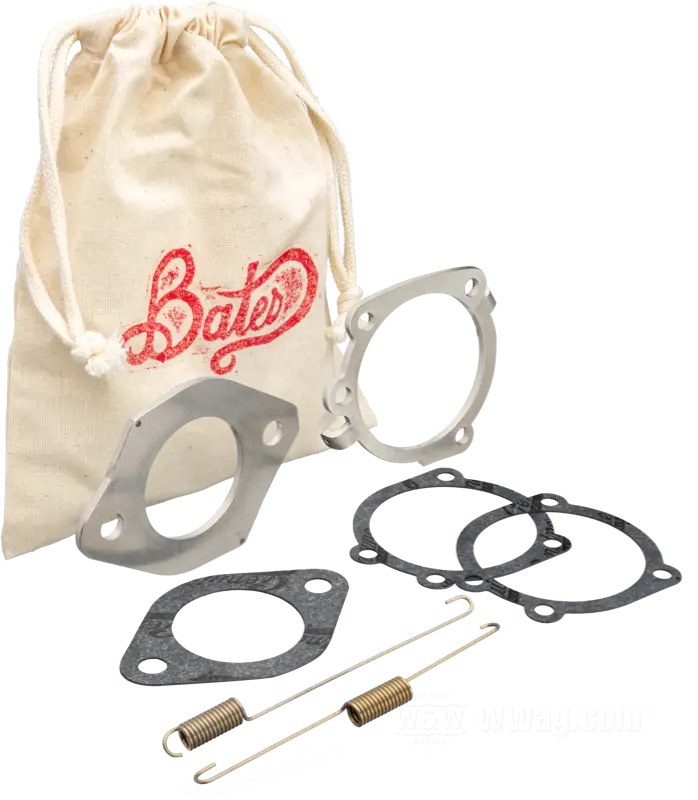

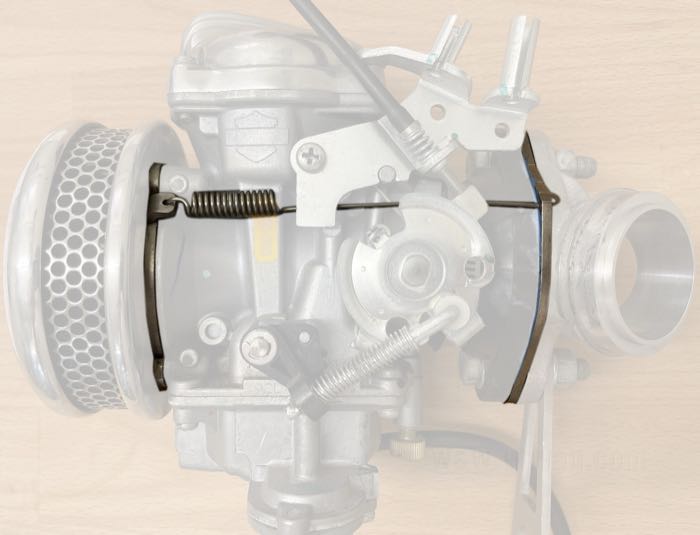

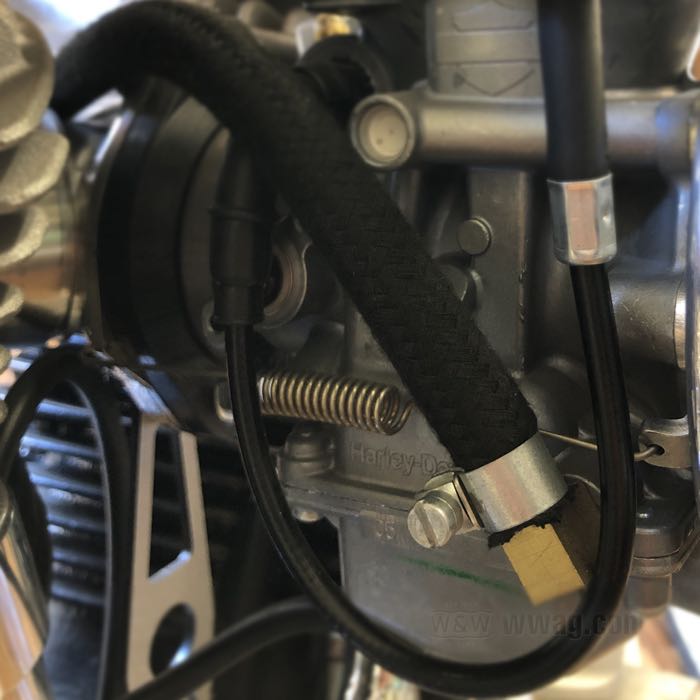

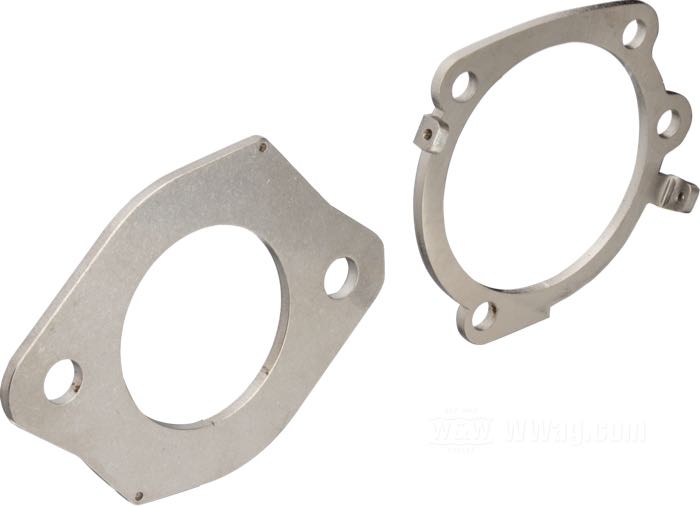

This smart kit inludes a 3 mm spacer plate, which resolves the first problem and a flange adapter with two spiral springs to connect spacer and plate and thus safely hold the carburetor in its rubber flange = resolution of the second problem.

Will fit all motors with 2-bolt Tillotson, Bendix or Keihin (butterfly) manifolds. Installation also requires a 2-bolt flange adapter and a carburetor support bracket, which both need to be purchased separately.

  • for Keihin CV carburetors 1988→
  • for Tillotson, Bendix and Keihin (butterfly) manifolds
  • stainless steel / spring steel
  • Spigot Ø: 42 mm
  • mounting hole distance: 70 mm
  • gross weight: 157 g
net price*
* United States of America: Tax free shipping. Please check your local import fees.
In stock. Ready for immediate delivery from our Würzburg, Germany warehouse
