BAKER 6 into 4 Transmissions

Select subgroup:
Big Twin 1936-1964
Big Twin 1936-1964
Big Twin 1970-1984
Big Twin 1970-1984
Select variant:
Price and stock:
Item №
74-327
Price incl. VAT
5,882.12 €
Available
1
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 939.16 € German VAT.
piece
Save to wish list

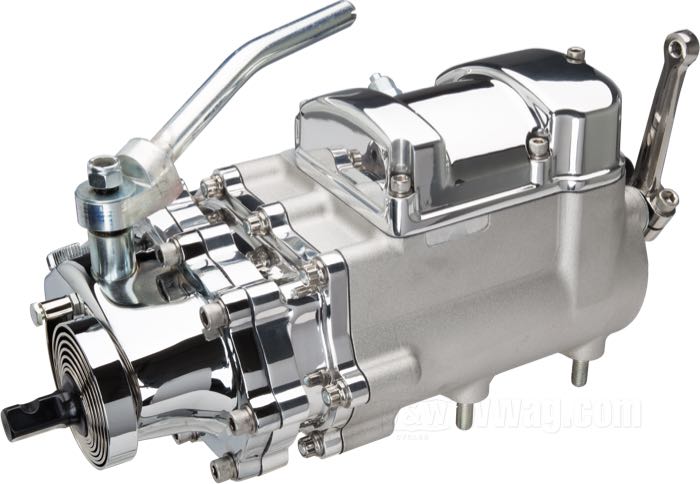

  • 6-speed transmission »6 in 4« by BAKER Drivetrain
  • fits Knucklehead 1936-1947, Big Twin Flathead 1937-1948, Panhead 1948-1964
  • cast aluminum / steel, bare
  • with 23 T sprocket, chrome-plated kicker cover
  • USA
  • gross weight: 22 kg

Convert your old rumblin’ mill into a purring interstate mile eater. These transmissions are replacements for stock 4-speed units. They bolt directly into your stock frame and your stock 4-speed primary and dry clutch fit right up.

The BAKER 6 into 4 has a 1:1 fifth gear and a 0.86:1 overdrive sixth gear for a 500 rpm reduction in cruising rpm on the highway. There is no provision for mechanical speedo drive, but the case accepts a sensor. The sensor-triggering gear has 37 teeth.

Gear ratios:

1st - 2.94:1

2nd - 2.21:1

3rd - 1.60:1

4th - 1:1.23

5th - 1:1

6th - 1:0.86

Due to the extended length of the transmission on the kicker side, the exhaust pipe, oil tank and electric starter mounting brackets may have to be modified. Some inner primary covers require modification to clear the main drive nut.

Accessories:

19-277

19-277

Speed sensor; fits Softail 1996-1999; harness length w/o plug: 135 cm; replaces OEM HD 74437-96B; gross weight: 80 g
more …
19-279

19-279

Speed sensor; fits Softail 2000-2006, Touring 2004-2006; harness length w/o plug: 28 cm; replaces OEM HD 74430-00D; gross weight: 40 g
more …
19-287

19-287

Speed sensor; fits Dyna 1995-2005, Touring 1994-1996; harness length w/o plug: 44 cm; replaces OEM HD 74420-94C; gross weight: 50 g
more …
BAKER Kicker Arm offset

BAKER Kicker Arm offset

A super strong kicker arm which has a twice as thick cross section compared to stock counterparts. Features a 45 mm offset design to clear most exhaust systems.
more …
BAKER 6 into 4 Adjuster Screw for Performance Clutches

BAKER 6 into 4 Adjuster Screw for Performance Clutches

When using aftermarket clutches like Barnett Scorpion and Rivera Pro-Clutch with 7/16”-20 adjusters you require this special adjuster screw and locknut.
more …
BAKER 6 into 4 Adjuster Screw for OEM Clutches

BAKER 6 into 4 Adjuster Screw for OEM Clutches

When using stock clutches you require this special adjuster screw.
more …
Adjustable Transmission Base Plates

Adjustable Transmission Base Plates

Precision-machined transmission mounting plate with built-in dual adjusters. Ideal for use with open belt drives. Features three front mounting holes to match early and late frames.
more …
Paughco Transmission Base Plates

Paughco Transmission Base Plates

Reproduction of the stock 4-speed transmission mounting plate as used from 1936–64. Can be used on later 4-speed models thru 1985, too.
more …
BAKER Kicker Arm straight

BAKER Kicker Arm straight

A super strong kicker arm which has a twice as thick cross section compared to stock counterparts. Since this kicker arm is straight, make sure it'll clear your exhaust before ordering.
more …
BAKER Speedo Sensor Hole Plug

BAKER Speedo Sensor Hole Plug

If you need to cap off the speedo sensor hole for whatever reason, you need this plug. Some other companies do this with a steel plate and a gasket, just like old 4-speeds. BAKER plugs are machined from 6061-T6 and include a no-leak o-ring and a chrome button head screw for a clean look.
more …
BAKER Kicker Cover Function Formed for Hydraulic Clutch

BAKER Kicker Cover Function Formed for Hydraulic Clutch

High performance kicker cover which features a show polished BAKER "Function Formed" design and which is machined from Aircraft Grade 6061 Billet aluminum for strength and increased part life. Included with this cover is a pre-installed 1-piece kicker shaft bushing plus smooth and strong BAKER Klassic kicker gears.
more …
BAKER Kicker Pedal

BAKER Kicker Pedal

This kicker pedal is cast from bronze and reinforced throughout. It features a heat treated spindle with 5/8” diameter (stock = 1/2”) to prevent breaking.
more …
