Axles for +16” and +20” Extra Long Springer Forks
Select variant:

for 1967-1972 hub and Cannonball wheels; CAD (ZnNi process); length: 295 mm; Ø 17 mm; Germany


for wide hubs with 3/4”/19 mm wheel bearings; CAD (ZnNi process); length: 292 mm; Ø 19 mm

for wide hubs with 3/4”/19 mm wheel bearings; chrome-plated; length: 292 mm; Ø 19 mm
Price and stock:
Item №
15-331
Price incl. VAT
146.61 €
Available
2
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 23.41 € German VAT.

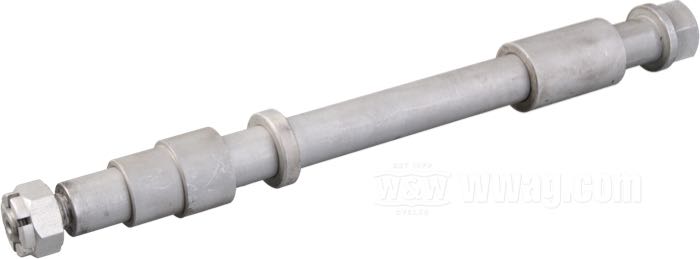

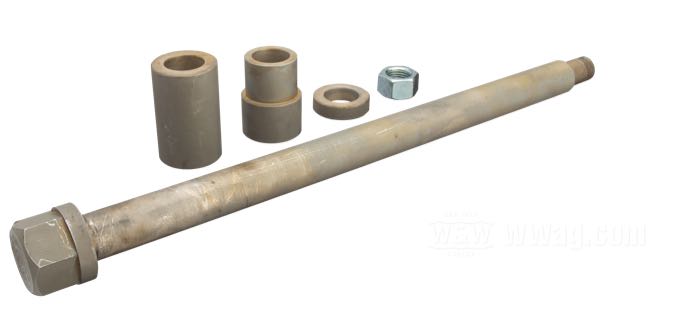

Special axle kits which fit +16” and +20” extra long Springer forks without any modifications. The 17 mm version is also intended for the use with Cannonball MAG-12 wheels.
- Front axle
- for extra long Springer forks +16” and +20” / 1967-1972 hub and Cannonball wheels
- steel, CAD (ZnNi process)
- length: 295 mm
- Ø 17 mm
- thread: 1/2”-20
- with spacers, bushings and nut
- Germany
- gross weight: 818 g
