Valve Train IOE Engines 1915-1929
>
The Cyclery Intake Housing Ring Nuts

The Cyclery Intake Housing Ring Nuts

Select subgroup:
for F/J (1000cc/61”) 1915-1929, FD/JD 1921-1924
for F/J (1000cc/61”) 1915-1929, FD/JD 1921-1924
for DCA and DCB 1923-1924 and FD/JD 1925-1929
for DCA and DCB 1923-1924 and FD/JD 1925-1929
Price and stock:
Item №
85-003
Price incl. VAT
58.19 €
Available
7
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 9.29 € German VAT.
piece
Save to wish list

Quite a cool thing that The Cyclery has invented and presenting here. Instead of simply offering replacement ring nuts for the intake housings of IOE models, they have addressed the problem of loose intake housing nuts. Until now, the solution to this was to weld and/or rework the threads in the cylinders of the pocket-valve V2 engines.

The ravages of time, unilateral pressure from the inlet tappets and pushrods, heat that weakens the structure, a lack of care when retightening the ring nuts - all these factors contribute to the fact that after about 100 years, the threads in the cylinders into which these nuts are screwed have widened and are no longer cylindrical, but often also conical. So it makes complete sense to offer oversize nuts as an uncomplicated solution for such maltreated threads. This way, reworking, welding and similar costly repairs can be avoided.

The nuts are manufactured in different outer diameters and you order two or three sizes to check which one fits your cylinder best. Of course, we will take back the nuts you don't need, as long as you have treated them well and screwed them in with a suitable tool and not with a pipe wrench.

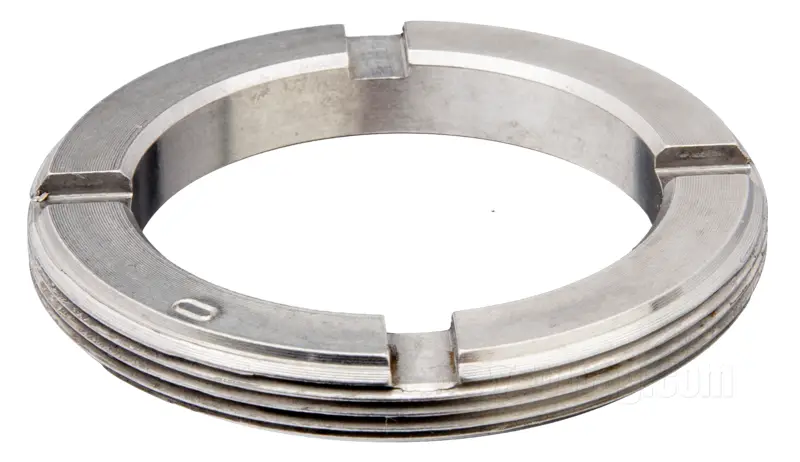

  • Ring nut by The Cyclery
  • for intake housing
  • fits 61” twins 1915-1929, FD and JD 1921-1924
  • nominal thread: 2-5/16”-20
  • steel
  • outer Ø: 58.4 mm
  • replaces Harley-Davidson part number HD 101-15
  • gross weight: 70 g
