The Cyclery Clutch Springs 1636-1940
Select variant:
fits Knucklehead 1936, Big Twins 1937-mid 1938; spring tension 56lbs@50 mm; length: 77.5 mm; Ø 16 mm; replaces OEM HD 2511-36
fits Big Twin late 1938-1940; spring tension 62lbs@50 mm; length: 62 mm; Ø 18.5 mm; replaces OEM HD 2511-36, and 2511-38
Price and stock:
Item №
80-711
Price incl. VAT
3.77 €
Available
100+
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 0.60 € German VAT.

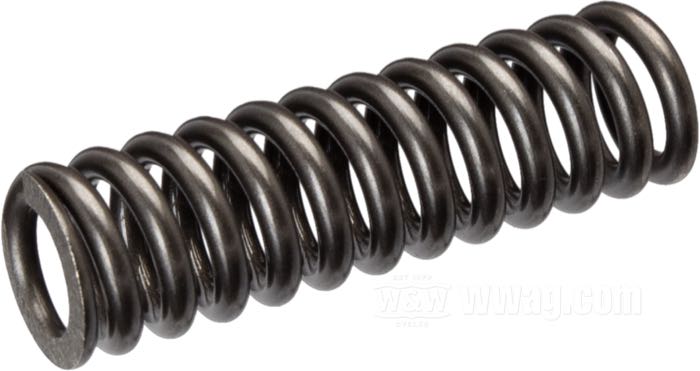

- Spring by The Cyclery
- for Clutch
- fits Knucklehead 1936, Big Twins 1937-mid 1938
- spring steel, spring tension 56lbs@50 mm
- length: 77.5 mm
- Ø 16 mm
- replaces Harley-Davidson part number HD 2511-36
- Germany
- gross weight: 30 g
Stock replacement clutch springs for 1936-1940 Big Twins. Precisely manufactured in Germany after NOS parts.
