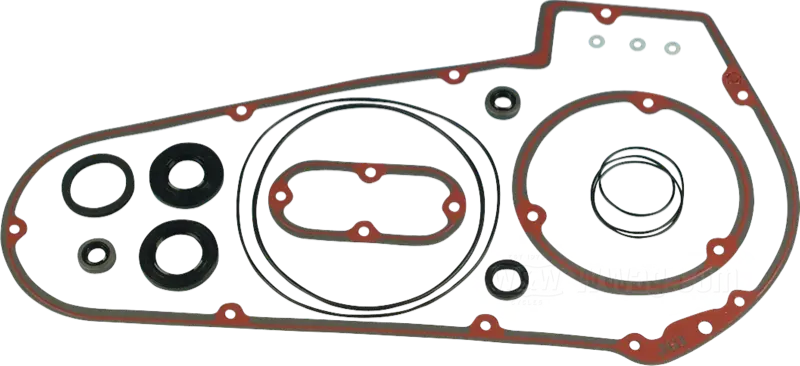

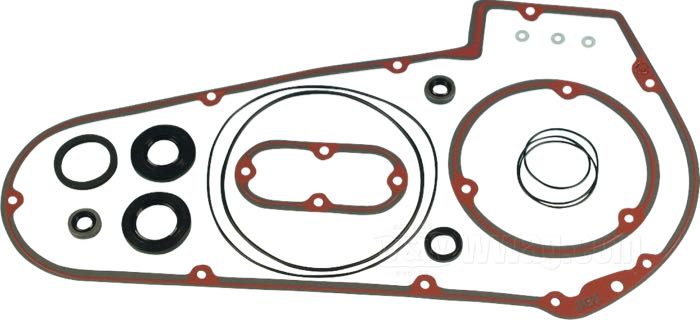

James Gasket Kits for Primary: 4-Speed Big Twin 1965-1986 and Softail →1988
James Gasket Kits for Primary: 4-Speed Big Twin 1965-1986 and Softail →1988
Select variant:

fits 4-speed Big Twin 1965-1986, Softail →1988; with main shaft seal


fits 4-speed Big Twin 1965-1983; NOTE: without main shaft oil seal
Price and stock:
Item №
57-797
Price incl. VAT
108.59 €
Available
100+
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 17.34 € German VAT.
- Gasket kit by James Gaskets
- for Primary
- fits 4-speed Big Twin 1965-1986, Softail →1988
- paper / rubber
- with main shaft seal
- gross weight: 300 g
Spare parts:

57-582
Seal washer by James Gaskets; for Screw / Outer primary chain guard; fits Big Twin late 1984-1998; steel / rubber; replaces OEM HD 31433-84; gross weight: 8 g

79-468
Snap ring; for Bearing / Inner primary housing; fits Big Twin 1985-2006; spring steel; replaces OEM HD 60678-85; gross weight: 10 g

57-025
O-Ring by James Gaskets; for Inner primary housing; fits FL(H) 1970-1982, FLH Classic 1979-1981, FLT 1980-1983, FX 1971-1984; rubber; ID x OD: 173.3 x 176.9 mm, 1.9 mm thick; replaces OEM HD 11125; gross weight: 2 g

57-047
O-Ring by James Gaskets; for Inner primary housing; fits FXR 1982→, FLH Classic 1982, FL(H) 1983-1984, Softail and FLT 1984, all Big Twin 1985-2006 (Dyna →2005); rubber; ID x OD: 172.6 x 177.6 mm, 2.7 mm thick; replaces OEM HD 11147B; gross weight: 10 g

57-071
O-Ring by James Gaskets; for Derby cover; fits Big Twin late 1984-1998; rubber; ID x OD: 154 x 161 mm, 3.5 mm thick; replaces OEM HD 25416-84; gross weight: 1 g

57-114
Oil seal by James Gaskets; for Pushrod / Nut / Clutch hub; fits Big Twin 1965-early 1984; rubber / steel; ID x OD: 9.5 x 22.3 mm, 7.9 mm thick ; replaces OEM HD 12014; USA; gross weight: 10 g

57-118
Oil seal by James Gaskets; for Main shaft / Inner primary cover; fits Big Twin 1970-early 1984; steel / rubber; replaces OEM HD 12018; gross weight: 20 g

57-151
Oil seal; for Starter shaft / Transmission case; fits Big Twin late 1984-1988; steel / rubber; ID x OD: 18.5 x 29 mm; replaces OEM HD 12051; gross weight: 10 g

57-152
Oil seal by James Gaskets; for Main shaft / Inner primary cover; fits Big Twin late 1984→; steel / rubber; replaces OEM HD 12052A; gross weight: 10 g

57-185
Oil seal by James Gaskets; for Shifter shaft; fits FX 1974-1985; steel / rubber; replaces OEM HD 60641-74; gross weight: 10 g

57-495
Gasket by James Gaskets; for Derby cover; fits Big Twin 1970-early 1984; paper; replaces OEM HD 25416-70; gross weight: 1 g

57-651
Gasket by James Gaskets; for Outer primary chain guard; fits 4 speed Big Twin 1965→, Softail →1988; 9 bolt holes; paper, thick (0.062”); replaces OEM HD 60538-81A; gross weight: 20 g

57-666
Gasket by James Gaskets; for Solenoid / Starter motor; fits 4-speed Big Twin 1965-1982, 5-speed Big Twin 1980-1981, Sportster 1967-1980; foam rubber; replaces OEM HD 60645-65; gross weight: 10 g

57-750
Gasket by James Gaskets; for Inspection cover; fits 4 speed Big Twin 1965→, Dyna →2005, Softail →2006; paper / silicone, silicone bead on one side; replaces OEM HD 60567-90; gross weight: 10 g

69-323
Tab washer; for Inner primary housing; fits Big Twin 1985-2005; steel; replaces OEM HD 33318-85; gross weight: 10 g
