Shop Engine Top End Piston Rings
Hastings Piston Rings OEM Pack

Hastings Piston Rings OEM Pack

Select subgroup:
for 1200cc Flatheads, 1000cc Knucklehead, 1000cc Panheads, Standard
for 1200cc Flatheads, 1000cc Knucklehead, 1000cc Panheads, Standard
for 750cc from 1929-1973 with 1/16” Compression Rings, Standard
for 750cc from 1929-1973 with 1/16” Compression Rings, Standard
 for 750cc from 1929-1973 with 3/32” Compression Rings, Standard
for 750cc from 1929-1973 with 3/32” Compression Rings, Standard
 for 1200cc Knuckle-, Pan- and Shovelhead and 1300cc Flatheads, Standard
for 1200cc Knuckle-, Pan- and Shovelhead and 1300cc Flatheads, Standard
 for 1200cc Knuckle-, Pan- and Shovelhead and 1300cc Flatheads, Chrome
for 1200cc Knuckle-, Pan- and Shovelhead and 1300cc Flatheads, Chrome
 for 1340cc Shovelhead 1979-1984, Standard
for 1340cc Shovelhead 1979-1984, Standard
 for 1340cc Shovelhead 1979-1984, Chrome
for 1340cc Shovelhead 1979-1984, Chrome
 for 1340cc Evolution Big Twin, 1200cc Sportster →2003, Standard
for 1340cc Evolution Big Twin, 1200cc Sportster →2003, Standard
 for 1340cc Evolution Big Twin, 1200cc Sportster →2003, Chrome
for 1340cc Evolution Big Twin, 1200cc Sportster →2003, Chrome
 for 900cc Sportster 1957-1971, Standard
for 900cc Sportster 1957-1971, Standard
 for 1000cc Sportster 1972-1985, Standard
for 1000cc Sportster 1972-1985, Standard
 for 1000cc Sportster 1972-1985, Chrome
for 1000cc Sportster 1972-1985, Chrome
 for 883cc Evolution Sportster 1986→
for 883cc Evolution Sportster 1986→
 for 1100cc Evolution Sportster 1986-1987, Chrome
for 1100cc Evolution Sportster 1986-1987, Chrome
Select variant:
61-851
Over-/Undersize: +0.010 ”; replaces OEM HD 22327-48
61-850
Over-/Undersize: +0.000 ”; replaces OEM HD 22325-48
 61-852
Over-/Undersize: +0.020 ”; replaces OEM HD 22328-48
 61-853
Over-/Undersize: +0.030 ”; replaces OEM HD 22329-48
Price and stock:
Item №
61-851
Price incl. VAT
242.21 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 38.67 € German VAT.
set
Save to wish list
Facts
Description
Documents

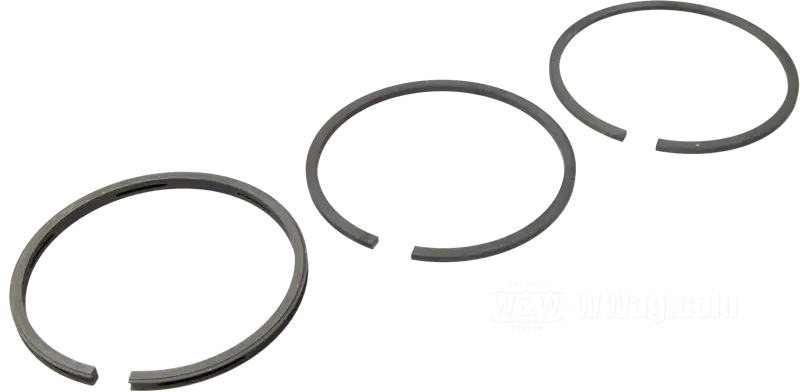

  • Piston ring set by Hastings
  • fits 1200cc Flatheads, 1000cc Knucklehead, 1000cc Panheads
  • cast iron
  • Over-/Undersize: +0.010 ”
  • nominal bore: 3-5/16 ”
  • compression ring height: 3/32 ”
  • oil ring height G: 3/16 ”
  • replaces Harley-Davidson part number HD 22327-48
  • USA
  • gross weight: 78 g

Piston ring sets for most H-D models, which provide a perfect combination of design and materials, delivering full power and lasting oil and blow-by control. Available as Standard ring sets or as Chrome ring sets. The Standard rings are direct stock replacements and compression rings and oil control rings are made like the OEM  parts. The chrome ring sets feature compression rings with hard chromium coated faces to reduce friction. They fit both W&W aftermarket pistons and original HD pistons.

Each package contains rings for two pistons, except those for 1200cc Flatheads, 1000cc Knucklehead/Panheads, XL 883 and XL 1100, which include rings for one piston only .

for 1200cc Flatheads, 1000cc Knucklehead, 1000cc Panheads, Standard

Piston ring set for one piston.

Instructions

See also:

Compression Pliers for Piston Rings

Compression Pliers for Piston Rings

Don't risk damage to your new piston rings when installing the cylinder on the piston without the right tool. This compressor set includes six compression rings ranging from 2-7/8” to 4-3/8” (73 to 111 mm) and pliers with ratcheting mechanism. It makes the job a lot easier and gentle on the material.
more …
