Diamond King Gas Tanks
Price and stock:
Item №
35-252
Price incl. VAT
257.17 €
Available
10
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 41.06 € German VAT.

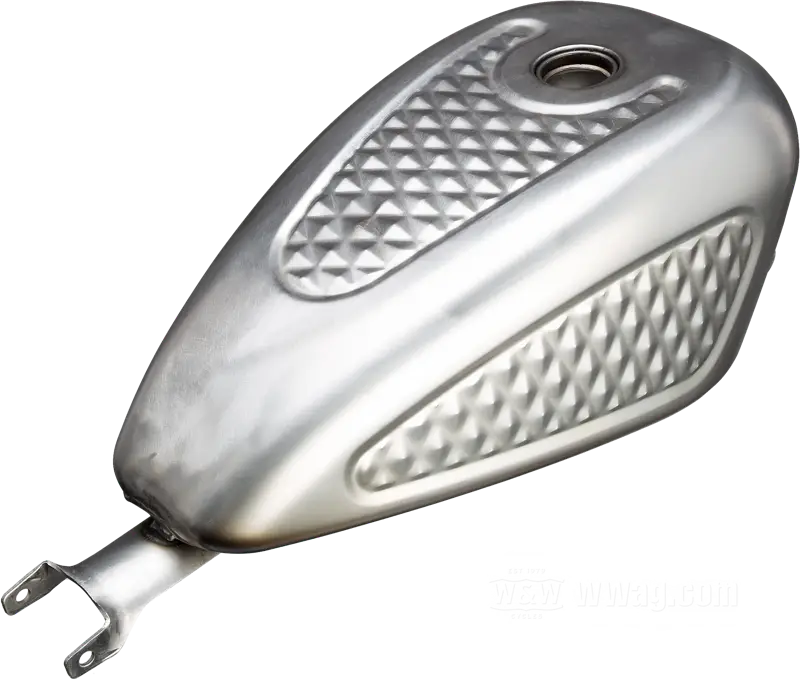

- Gas tank »Diamond King«
- fits Sportster 2004-2006
- steel, bare
- volume: 12.5 l
- required gas cap: 1 x vented / screw-in 1983→
- required petcock: M22 x 1
- required petcock: M22 x 1
- gross weight: 6.01 kg
Gas tanks with distinctive diamond-style embossings on top and on the sides. They feature the same basic design as the stock counterparts but are made wider for increased capacity. This will allow for longer intervals between gas station stops on long hauls.
All gas tanks by W&W Cycles are delivered unpainted and unsealed. Before the paint job and final installation please consider the following:
- We consistently receive tight gas tanks from the manufacturers, both Custom and OEM replacements.
- Problems mostly occur during or after installation. Hence, before a pressure test and before painting - a probationary tensionless installation is highly recommended. Any leverage on the tank mounts spells trouble. Better use our selection of small parts.
- To avoid corrosion always fill your tank to the max during longer downtimes or seal it on the inside.
Accessories:

Pingel Power-Flo Smooth Fuel Valves - 22 mm HD Metric Petcock Thread

Pingel Power-Flo Classic Fuel Valves - 22 mm HD Metric Petcock Thread

1975 Style Fuel Valves - 22 mm HD Metric Petcock Thread
For all factory tanks from 1975–up as well as all aftermarket tanks with 22 mm external thread connection.

Low Profile Gas Caps
Viewed from the side these gas caps sit snugly on the gas tank, hence the name. The knurled edge makes them easy to operate, even with gloves on.

Lowbrow Competition Gas Caps
Add a little race style to your 1983→ Harley-Davidson motorcycle with one of these filler caps, inspired by vintage aviation gas caps. With FUEL touted across the cap, they look right at home on cafe racers and scramblers as well as on any performance motorcycle. They feature a ratcheting mechanism, which allows you to tighten the cap and then rotate the design in line with your bike.
