Dell’Orto Carburetors
Select variant:
»PHM 40«; fits 1340 - 1540 cc; Ø 40 mm; with main jet 148, idle jet 55, needle jet 265, needle K4-3, choke jet 65
»PHF 36«; fits 750 cc; Ø 36 mm; with main jet 150, idle jet 65, needle jet 268, needle K4-3, choke jet 70
»PHM 38«; fits 1000 - 1200 cc; Ø 38 mm; with main jet 145, idle jet 50, needle jet 265, needle K4-3, choke jet 60
Price and stock:
Item №
65-120
Price incl. VAT
459.80 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 73.41 € German VAT.

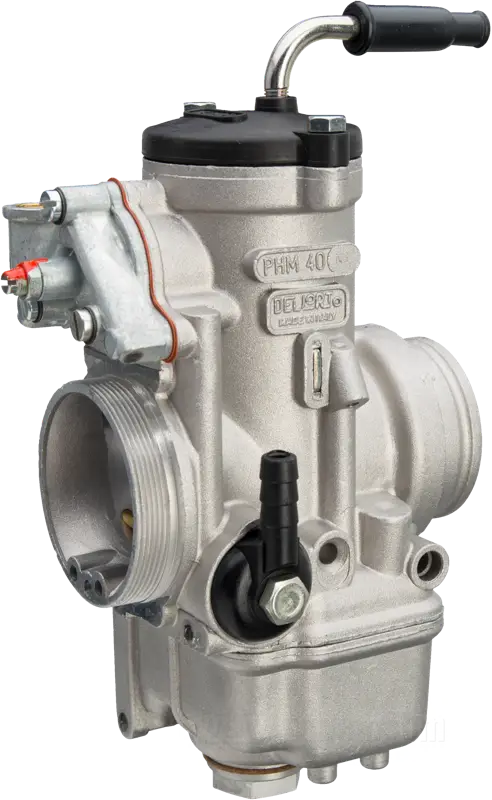

- Slide carburetor »PHM 40« by Dell’Orto
- fits 1340 - 1540 cc
- cast aluminum, cast finish
- Ø 40 mm
- with main jet 148, idle jet 55, needle jet 265, needle K4-3, choke jet 65
- gross weight: 940 g
These round-slide carburetors from Italy belong to the all-time classics of Harley custom carburetors and especially Panhead and Shovelhead riders have a long-lived passion for them. For good reason, because Dell'Orto carbs are not complicated, million-piece designs but straight-forward units which are easy to tune and therefore an excellent choice for self-wrenches. Offered at reasonable prices the selection includes 3 basic carburetors for different displacement groups with a wide range of accessories. These allow to install the carbs on various models.
Spare parts:
Top Covers for Dell’Orto Carburetors
Custom top cover for Dell’Orto carburetors. It replaces the standard plastic part.
Replacement Parts for Dell’Orto Carburetors
Gasket Kits for Dell’Orto Carburetors
Each kit contains all necessary replacement gaskets and o-rings for a Dell’Orto PHM or PHFcarburetor.
Main Jets for Dell’Orto Carburetors
Idle Jets for Dell’Orto Carburetors
Emulsion Tube for Dell’Orto Carburetors
Jet Needles for Dell’Orto Carburetors
Accessories:
66-951
Air cleaner »Hot Rod« by VIP - Vintage Iron Parts; for Dell’Orto 38mm/40mm carburetors; steel, chrome-plated, louvered side; depth: 60 mm; Ø 120 mm; thread: M52 x 1.25; gross weight: 530 g
66-952
Air cleaner »Rat Rod« by VIP - Vintage Iron Parts; for Dell’Orto 38mm/40mm carburetors; steel, chrome-plated, open side; depth: 60 mm; Ø 100 mm; thread: M52 x 1.25; gross weight: 454 g
The GasBox Carburetor Support Brackets BT OHV 1936-1984
This carb support bracket is made to support your intake manifold in order to keep your carb up and safely route your gas line keeping it off the cylinders. Will work with most carburetors.
Throttle Cables for Throttle Grip Sets →1980 with Dell'Orto PHM
Throttle Cables for Throttle Grip Sets 1981-1995 with Dell'Orto PHM
The GasBox Carburetor Support Brackets Ironhead XL
This Ironhead Sportster carb support bracket is made to bolt to your intake manifold and front intake tappet guide bolt. Will work with any carburetor.
Air Cleaner Adaptor Dell’Orto universal
These screw-on adaptors for Dell’Orto carbs feature undrilled flanges for mounting any possible air cleaner.
PVC Carburetor Vent Lines/Overflow Hoses
Transparent lines which can be used as carburetor vent lines or overflow hoses. They are made from PVC.
Manifold Adaptors for Dell'Orto,Mikuni and CV Carburetors
Rubber adaptors to mount spigot style carbs like Mikuni, Dell‘Orto, Keihin CV, etc. to manifolds with two-bolt flange.
Throttle Cables for Throttle Grip Sets →1980 with Dell'Orto PHM and adjuster on both sides
Air Cleaner Adaptors Dell’Orto
Made from billet aluminum, these screw-on adaptors will fit Dell’Orto carbs and accept a wide selection of air cleaners like Bendix, Keihin (not CV) and S&S Super B air cleaners.
Gasket Kits for Dell’Orto Carburetors
Each kit contains all necessary replacement gaskets and o-rings for a Dell’Orto PHM or PHFcarburetor.
Adapters for Dell’Orto Carburetors
Adaptor flange with O-ring for 38 and 40 mm Dell'Orto Pumper carbs. Allows solid fastening of carburetor onto 2-bolt manifolds.
Adapters for Dell'Orto Carburetors on Linkert Manifolds
Special adapters to mount Dell'Orto Pumper carburetors to Linkert manifolds.
Helix PU Carburetor Vent Lines/Overflow Hoses
These transparent lines by Helix can be used as carburetor vent lines or overflow hoses. They are made from premium polyurethane with a Shore hardness of 85, which provides for superior resistance against abrasions, kink, tear, oxidation and chemical influences. It has a melting temperature of 188°C and an operating temperature range of -59° to +68°C. This line material will not get hard and stays flexible.
