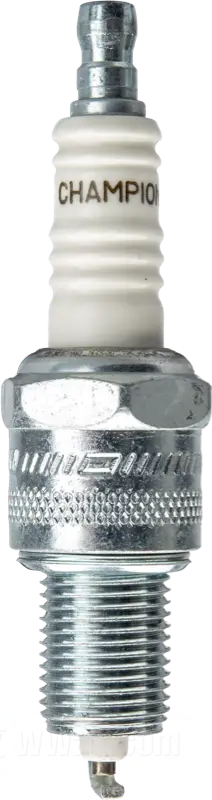

Spark Plugs #5R6A: Shovelhead 1975→, Evolution Big Twin 1984→
- fits Shovelhead 1975→, Evo Big Twin 1984→
- also for: S&S engines and cylinder heads
- porcelain / steel
- thread: M14 x 1.25
- thread length: 3/4 ”
- wrench size: 13/16 ”
- heat range: manufacturer-code RN12YC corresponds to HD-code 5R6A
- replaces Harley-Davidson part number 32312-77, 32311-83, and 32342-04
- gross weight: 70 g
Champion Spark Plugs
Stock replacements since decades with proven performance. Excellent value.
Spark Plug Heat Ranges
Harley spark plug heat ranges are marked by numbers, from 2 to 12. No. 2 is the hottest plug, no. 6 would then be a relatively cool plug. The coolest plug used by Harley-Davidson is marked 10R12A. Double numbers characterize multi-range plugs.
With older motors, it was not uncommon, that you achieved an optimum with plugs of two different heat ranges. Unlike the well known prejudice implied, you had to choose cooler plugs for the front and hotter plugs for the rear cylinder. On later Harley engine designs, heat distribution is balanced to such an extent that you should not have to rely on those tricks anymore.
