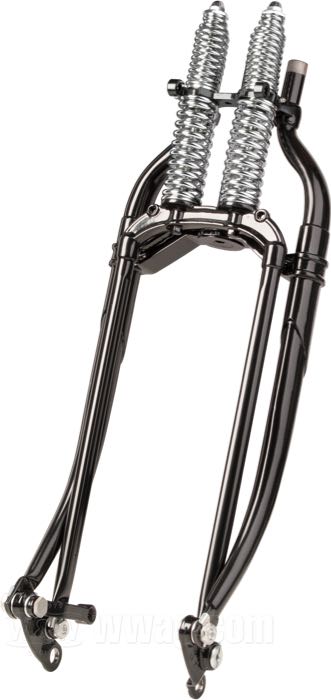

In the late 1920’s and early 1930’s, the Race Department experimented with a "trailing link" fork design on factory hillclimb race bikes. This distinctive design was the inspiration behind these reproduction Hillclimb Springer forks.
- The versions for Big Twins feature a fork stem that works with the included centering collar for 1936-up ball bearings. Moreover the stem also features two Ø1” bearing seats for the use of 1949-up tapered roller bearings without any modifications.
- The forks for 45”/750 cc models have a 7/8” fork stem and fit the stock neck bearings.
- The leg tops accept the 36-up Springer inline handlebars.
- Wheel trail equates that of standard Classic Springer forks.
The selection includes forks for stock or similar Springer drum brakes and forks for Custom disc brake systems. Length is measured from axle center line to seat of lower steering head bearing.
Although these Custom forks are intended for 1936-1957 rigid frame Big Twins they can be mounted with later frames, too, provided you have/install matching frame head beariings. The builder has to consider rake, trail, overall chassis geometry, brake function, etc.
1.) The pivot point of the brake shackle on the backing plate or caliper bracket must not be positioned vertically above or in front of the wheel axle (driving direction). In this case the moving forces in your fork parallelogram will be reversed and the fork will rebound instead of being compressed when you apply the brake. This will generate very high forces to impact on your rigid fork leg with possible damage.
2.) Caliper bracket or drum brake backing plate must float on the wheel axle. If not, the fork will rebound as well when applying the brake. Result: see above.
- fits Big Twins
- for Big Twin Springer drum brake and axle
- steel, black, powder-coated, with chromed springs, internal thread of neck post: 3/4”-14 UNS
- rake: 0 °
Internal Threads on the Upper End of the Legs
For custom riser installation the fork legs have M20x1.5 internal threads at the upper end and accept riser adapter studs or plugs which are available separately; an extra added by the manufacturer which saves you a lot of work and axle grease.
Inline vs. Offset
Classic Springer Forks are produced for different frame rakes.
- In the beginning, both the main tubes and the steering stem were in the same plane. This is called "inline". The rake is 0°. Of this type were all 45” Springer forks 1936-1957 and all Big Twin forks 1936-1945.
- From 1946 onwards the Big Twins had the neck angle increased to 30°. To maintain fork inclination and ground clearance, the steering stem was tilted to the rear by 3°. We call these forks Offset -3°, they were stock on 1946-1948 Big Twins.
- When building a bike with ≥+8” extra long forks you don’t want the steering neck so high and inclined that the bike is difficult to steer. Therefore such forks are manufactured with a positive rake, i.e. the steering stem is inclined to the front by 3°. We call these forks Offset +3°.
The sketch shows the placement of the lateral tubes and steering stem seen from the drivers place. Now it is clear, too, why there have to be three different types of top trees or handlebars for Classich Springer forks.
As a running change the manufacturer currently changes all black powder-coated rockers to a parkerized finish, as it was original back in the days. For a transition period W&W Cycles will have both types in stock, so if this is important for you, please contact our sales staff and let them know your preference.
Springer fork Pricing
Current info on price and availability of Springer forks - in particular the forged Cannonball forks:
The current political situation has resulted in the manufacturers of the forged parts and upper triple clamp parts no longer having the capacity for such "civilian" work pieces. We have been informed that all available resources are being used for large and comprehensive defense contracts.
This means that there will be no more supplies of Springer forks for an indefinite period of time (at least 6 months), at least in the quality we require.
Since we do not expect the political situation to improve any time soon, we have started looking for companies that can help us as soon as possible. This could take time - the shortage of skilled workers and the dwindling number of experienced foundries and forges make it difficult. But we're staying on it.
