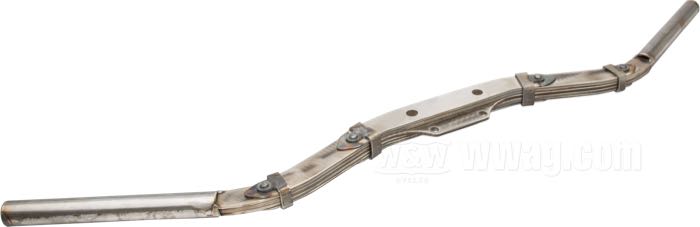

Erwin "Cannonball" Baker would have liked these unusual handlebars during his grueling transcontinental rides in the 1920’s and in fact the design derives from this era when the first leaf spring handlebars were installed on motorcycles. The idea was to take some vibration out of the bars and add some flexibility when hitting bumps or potholes. However, we admit that you cannot expect too much in that sense. What the Cannonball bars can offer are stability and a unique style. They are made by a skilled craftsman in very limited numbers in a small manufacture in Italy so you definitely won’t see them often on other bikes. Choose from narrow Lane Splitter or wide El Jefe handlebars. All versions feature 1” Ø tubular ends to accept common controls and grips and a 2-hole fixture to mount custom headlamp/instrument brackets. Mounting hardware is not included and must be purchased separately.
- for hydraulic forks with 3.5” (89 mm) riser bolt distance
- steel, bare
- Ø 1”
- wire routing: W1 plain, without dimples (→1981)
If you choose a plated finish for your leaf springs make sure to prevent corrosion between the leaves with a regular spray of Pan-a-Lube or similar rust protection.
Cannonball Lane Splitter 3.5" Handlebars
Kustom Tech Deluxe Handlebar Controls
Cannonball Leaf Spring Forks
Of course, the stock item doesn´t fit a Harley frame without major alterations, so W&W decided to produce its own version which allows such an installation without many difficulties. But, of course, not another quick and dirty copy with ugly welding seams and wrong rocker geometry. The Cannonball fork is a professionaly made part with a design as close as possible to its original pattern, manufactured by expert craftsmen in Italy. The first complete prototype was rigorously tested during W&W’s winter tour in Northern Canada and after that sent to the German technical authorities for a certificate of stability (included). Both tests were passed without any flaws. After that production started.
All test rides were performed with a rigid frame, 30° neck chassis, with which both handling and braking characteristics proved well balanced and stable.
The Cannonball leaf spring fork features a fork stem with two Ø1” bearing seats for the use of 1949-up Timken bearings and leg tops to accept the 36-up Springer handlebars (inline). A horizontal bracket to mount the headlamp is also there. The fork is wide enough to accept disc brake or drum brake systems. Rockers are drilled for 17 mm axles but can be enlarged to 19 mm. Neither axle, spacers nor brake are included and must be purchased or fabricated separately. Each fork is shipped preassembled to insure proper function and fitment, however, all components are bare and require painting or plating.
Biltwell Whiskey Throttle Grips
